HVAC control Using Ladder Logic

HVAC control: A ladder logic program can be used to control the operation of heating, ventilation, and air conditioning systems, including adjusting the temperature and triggering alarms if necessary.

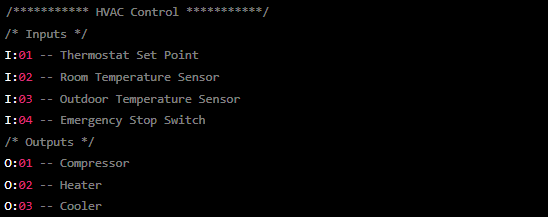

Here is an example of a ladder logic program for HVAC control:

This program uses ladder logic, a type of programming language used in industrial control systems, such as programmable logic controllers (PLCs). The program is organized as a series of "rungs" on a "ladder", with each rung representing a logical statement.

The program starts by checking for an emergency stop signal on input 04, if this is true it will turn off the compressor, heater and cooler.

Then, the program checks the room temperature against the thermostat set point, if it's below the set point, it will turn on the compressor and heater, if it's above it will turn on the compressor and cooler.

If the room temperature is equal to the set point, it will turn off all the outputs. And finally, it checks if outdoor temperature is below freezing, in that case it will turn off the compressor and heater.

This is just a basic example, in real-world scenario this program will be more complex with multiple inputs and outputs, and some safety measure and interlocks.
