Automatic gate system: A ladder logic program can be used to control the operation of an automatic gate system, including detecting when a vehicle is approaching the gate and opening or closing the gate accordingly.

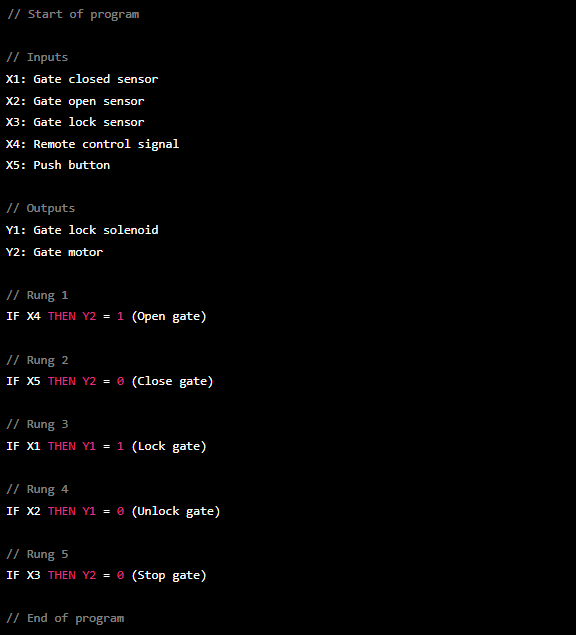

Here is an example of ladder logic code for an automatic gate system:
This program uses ladder logic, a type of programming language used in programmable logic controllers (PLCs) to control industrial equipment and machinery.
The program starts with input and output definitions. The inputs in this example are X1, X2, X3, X4, and X5, which represent the gate closed sensor, gate open sensor, gate lock sensor, remote control signal, and push button, respectively. The outputs in this example are Y1 and Y2, which represent the gate lock solenoid and gate motor, respectively.
The program then uses a series of "rungs" to control the output devices based on the input signals. Rung 1 checks if the remote control signal (X4) is present, and if so, sets the gate motor (Y2) to 1, which opens the gate. Rung 2 checks if the push button (X5) is pressed, and if so, sets the gate motor (Y2) to 0, which closes the gate. Rung 3 checks if the gate closed sensor (X1) is active, and if so, sets the gate lock solenoid (Y1) to 1, which locks the gate. Rung 4 checks if the gate open sensor (X2) is active, and if so, sets the gate lock solenoid (Y1) to 0, which unlocks the gate. Rung 5 checks if the gate lock sensor (X3) is active and if so, sets the gate motor (Y2) to 0, which stop the gate.
This code is a simplified example and does not take into account of all the possible scenarios, such as gate obstruction, time delay etc. You should consult with experts in the field to ensure that the program you use is suitable for your specific application.
